LED ওয়াল ধাবক হাল্কা & LED জলতলের হাল্কা প্রস্তুতকারকের
Place of Origin: | Shenzhen, China |
পরিচিতিমুলক নাম: | Maysee |
সাক্ষ্যদান: | CE/ROHS |
Model Number: | MS-WW-RGB-L3 |
Minimum Order Quantity: | 1pc |
---|---|
মূল্য: | negotiable for better price |
Packaging Details: | standard carton box for export |
Delivery Time: | 10-15 days upon receipt of the deposit |
Payment Terms: | T/T or Western Union or Paypal |
Supply Ability: | 20000 pcs |
Model No.: | MS-WW-RGB-L3 | Material: | Aluminum |
---|---|---|---|
LED Type: | CREE | Lens-angle: | 120° |
Input Voltage: | 24VDC | Rated Power: | 10W |
Dimension: | 1000mm(L)x42mm(W)x60mm(H) | Light Source: | RGB/R/G/B/W |
Control Mode: | DMX/on-off | ||
লক্ষণীয় করা: | linear led wall washer light,led wall washer ip65 |

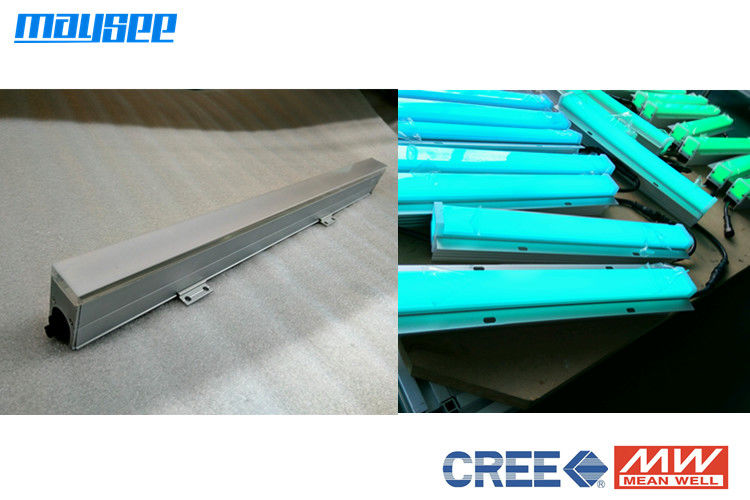

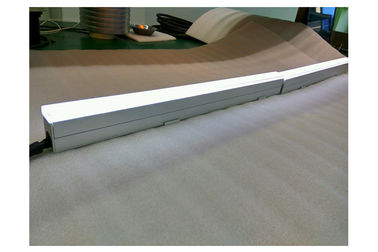

IP67 linear 3in1 led wall washer 80pcs led wash light with PMMA diffuser
Features
1. System Includes: Modules + Aluminum Mounting Profile +
Diffuser/Cover + Power-Data Equipment
2. Fully sealed for use in dry, damp or wet locations
3. 80 x 3-in-1 RGB or Monochromatic LEDs per 1000mm
4. 10W maximum power consumption per 500mm or 20W per meter
5. Up to 4000 cd/m2 diffuser tube luminance
6. Architectural grade anodized mounting profile, no visible fasteners
7. Frame per second: >100 FPS at DMX512 control
8. Dimmable range: 0~255 steps at DMX512 dimming control
9. Built-in constanct-current circuit with PWM signal>400Hz
10. IP67
Specification
Model No. | MS-WW-RGB-L3 |
Rated Power | 20W(max.) |
Length | 1000mm |
Net Weight | 1.8kg |
Q'ty of LEDs | 80pcs |
Pixels per Bar | 8 pixels |
DMX Channel per Bar | 8x3-CH |
Pixel Pitch | 12.5mm |
WidthxDepth | 42mmx60mm |
Input Voltage | 24-48VDC |
LED Brand | CREE |
Lens | 120 |
Light Color | SMD (3-in-1) or mono-color |
Material | anodized aluminum housing & Acrylic diffuser |
Bar Intensity | 35Lm/W (RGB) |
Operating Humidity | 0-99%RH |
Operation Temperature | -20℃-70℃ |
Life Time | 50,000 hrs |
IP Rating | IP67 |
Control Mode | DMX512 for RGB version/on-off switch for mono version |
Mounting | surface-mounting |
Warranty | 3-year |
Application:
1. Wall reflecting light on many occasions, such as KTV, pub, building, park and so on
2. Indoor lighting in franchise house and shopping mall
3. Decoration in the place of entertainment, bar, coffee house
4. Lighting in museum, art gallery
5. Stage lighting in commercial theatre, auditorium
6. Lighting in hotel
7. Lighting in meeting room and multi-function room
8. Lighting in exhibition and fashion show
9. Lighting in living room and home theatre
Description
MS-WW-RGB-L series is an ultra slim LED profile which provides tremendous flexibility to integrate seamlessly with architectural structures. It brings urban landscapes to life with dynamic color-changing images. MS-WW-RGB-L series also illuminates facades and intrinsic building details with vivid, color-changing light to accentuate building structures. It comes with the standard length 500mm/1000mm for various application. Made with durable, high-brightness and energy-efficient components. Well to create seamless lighting effects. With both RGB multi-color and mono-color for option. Compatible with DMX control for RGB version, just on-off switch control is easy to run the mono version.
